2023/11/10-C/C++对称分组加密DES

博主： unique-Elven
发布时间：2023 年 11 月 10 日
467 次浏览
1 条评论
2213字数
分类：逆向工程学习经验

![image.png](https://www.oisec.cn/usr/uploads/2023/11/1278412872.png)

![image.png](https://www.oisec.cn/usr/uploads/2023/11/4294451728.png)

![image.png](https://www.oisec.cn/usr/uploads/2023/11/963634728.png)

![image.png](https://www.oisec.cn/usr/uploads/2023/11/3135581165.png)

![image.png](https://www.oisec.cn/usr/uploads/2023/11/2606100795.png)

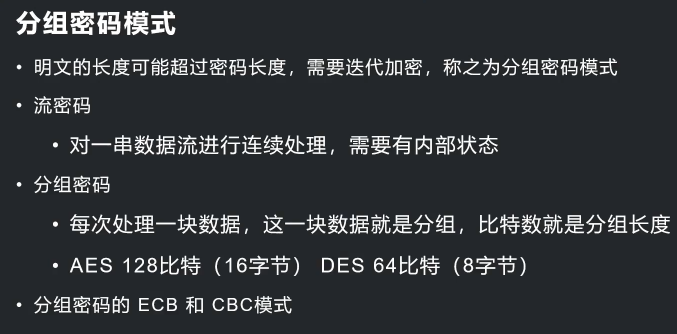

- 对称分组加密常用算法：

·DES
·3DES
·AES

·国密SM4

- 对称分组加密应用场景：

文件或者视频加密

加密比特币私钥

消息或者配置项加密

SSL通信加密

# 对称分组加密

## 使用异或实现一个简易的对称加密算法

A明文   B秘钥
A^B=密文A^B
(A^B)^B =A

> 密码补全和初始化
> 数据补全策略：PADDING_PKCS7(补其他)  		 PADDING_ZERO(补0)
>
> 举例：
>
> block = 8
>
> 12345678 9
> 12345678 90000000 ZERO
>
> 12345678 97777777 PKCS7
>
> 更详细请看：[DES加密初探 - 乙太的小屋 (52ying.top)](https://www.oisec.cn/index.php/archives/934/)DES算法填充方式

```
#include <iostream>

using namespace std;

//对称加解密数据
//@para data 输入数据
//@para data_size 输入数据大小
//@para out 输出数据
//@para pass 密钥
//@para pass_size 密钥长度
//@return  加解密后数据大小
#define XOR_BLOCK 8
int XorCipher(const unsigned char* data, int data_size,
	unsigned char* out,
	const unsigned char* pass,
	int pass_size
)
{
	static const char iv[] = "abcdefgt";
	//初始化密钥
	auto p = *(unsigned long long*)iv;
	//密钥补全，并且异或初始化向量
	//密钥小于XOR_BLOCK或者大于XOR_BLOCK
	for (int i = 0; i < pass_size; i += XOR_BLOCK)
	{
		unsigned long long tmp = 0;
		int size = XOR_BLOCK;
		//密钥小于 XOR_BLOCK
		if (pass_size - i < XOR_BLOCK) {
			size = pass_size - i;
		}
		memcpy(&tmp, (pass + i), size);
		p = (p ^ tmp);
	}

//数据源转换成8字节数据类型
	auto d = (unsigned long long*)data;
	//输出数据
	auto o = (unsigned long long*)out;
	//数据分组处理
	int i = 0;
	for (; i < data_size / XOR_BLOCK; i++)
	{
		o[i] = (d[i] ^ p);
	}
	//输入数据的补充
	int mod = data_size % XOR_BLOCK;
	if (mod != 0)
	{
		unsigned long long tmp = 0;
		memcpy(&tmp, (d + i), mod);
	}

int re_size = data_size;
	return re_size;
}

int main1(int argc, char* argv[])
{
	unsigned char data[] = "测试加解密数据TEST123测试";
	unsigned char out[1024] = { 0 };
	unsigned char out2[1024] = { 0 };
	unsigned char pass[] = "12345678";
	int pass_size = strlen((char*)pass);
	int len = XorCipher(data, sizeof(data),out, pass, pass_size);
	cout << len << "|"<<out << endl;
	len = XorCipher(out, len, out2, pass, pass_size);
	cout << len << "|" << out2 << endl;
	return 0;
}
```

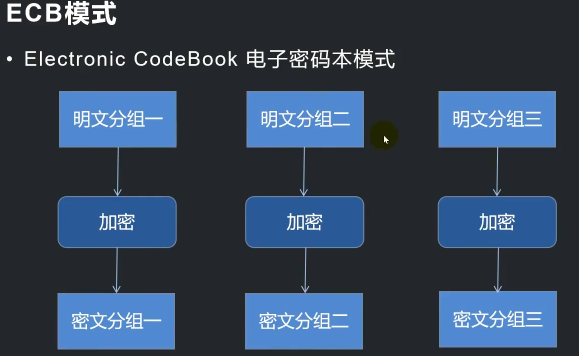

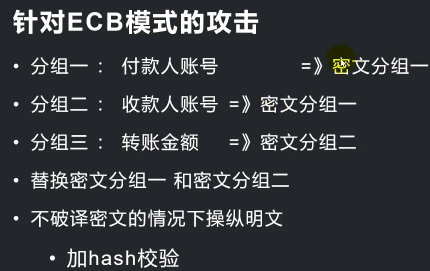

## DES_ECB攻击

```
#include <iostream>
#include <openssl/des.h>
using namespace std;

//交易数据
struct Slip
{
	char from[16] = { 0 }; //A=>B 10000
	char to[16] = { 0 };	//篡改为B=> 10000
	long long amount = 0;

};

static const_DES_cblock key = "1234567";
static DES_key_schedule key_sch;

void EnSlip(const Slip& s, unsigned char* out, int& out_size)
{
	const int size = sizeof(s);
	auto p = (const unsigned char*)&s;
	auto o = out;

DES_set_key(&key, &key_sch);
	for(int i = 0; i < size; i += 8)
	{
		DES_ecb_encrypt((const_DES_cblock*)p, (DES_cblock*)o, &key_sch, DES_ENCRYPT);
		p += 8;
		o += 8;
		out_size += 8;
	}
}

void AttackSlip(unsigned char* out)
{
	//修改秘文的from和to对调
	unsigned char tmp[1024] = { 0 };
	//from
	memcpy(tmp, out, 16);
	memcpy(out, out + 16, 16);
	memcpy(out + 16, tmp, 16);

}

void DeSlip(const unsigned char* in, int size, Slip& s)
{
	auto p = (const unsigned char*)in;
	auto o = (unsigned char*)&s;
	DES_set_key(&key, &key_sch);
	for (int i = 0; i < size; i += 8)
	{
		DES_ecb_encrypt((const_DES_cblock*)p, (DES_cblock*)o, &key_sch, DES_DECRYPT);
		p += 8;
		o += 8;
	}
}

int main()
{
	{
		unsigned char out[1024] = { 0 };
		int out_size = 0;
		Slip s1 = { "USER_A","USER_B",10000 };
		cout << "s2 from: " << s1.from << endl;
		cout << "s2 to: " << s1.to << endl;
		cout << "s2 ammout: " << s1.amount << endl;
		EnSlip(s1, out, out_size);
		cout << "En:"<< out_size <<"---->" << out << endl;

//攻击密文1
		AttackSlip(out);
		Slip s2;
		DeSlip(out, out_size, s2);
		cout << "s2 from: " << s2.from << endl;
		cout << "s2 to: " << s2.to << endl;
		cout << "s2 ammout: " << s2.amount << endl;

}

unsigned char data[] = "1234567";//数据
	unsigned char out[1024] = { 0 };//输出数据
	unsigned char out2[1024] = { 0 };

//1.设置密钥
	DES_set_key(&key, &key_sch);
	//数据加密
	DES_ecb_encrypt((const_DES_cblock*)data, (DES_cblock*)out, &key_sch, DES_ENCRYPT);
	cout << "加密：" << out << endl;

//解密
	DES_ecb_encrypt((const_DES_cblock*)out, (DES_cblock*)out2, &key_sch, DES_DECRYPT);
	cout << "解密：" << out2 << endl;
	getchar();
	return 0;
}
```

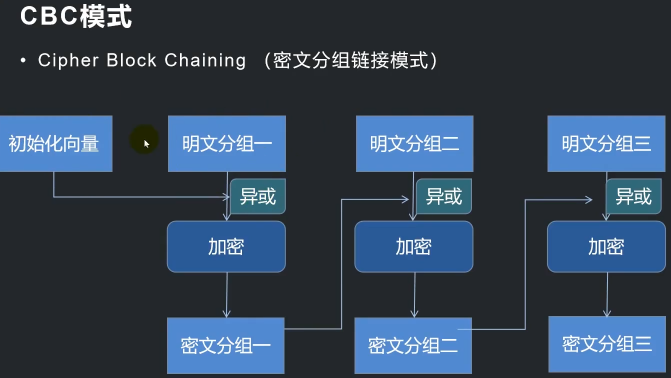

#### DES_CBC

```
void EnSlipCBC(const Slip& s, unsigned char* out, int& out_size)
{
	int size = sizeof(s);
	auto p = (const unsigned char*)&s;
	auto o = out;
	DES_set_key(&key, &key_sch);
	DES_cblock iv = { 0 };//初始化向量
	//初始化向量 DES_cbc_encrypt 调用后值不变    DES_ncbc_encrypt保存上次的值
	//如果数据不是8的倍数,会自动补0
	if (size % 8!= 0)
	{
		out_size = size + (8 - size % 8);
	}
	DES_cbc_encrypt(p, o, sizeof(s), &key_sch, &iv,DES_ENCRYPT);
}
void DeSlipCBC(const unsigned char* in, int size, Slip& s)
{
	DES_cblock iv = { 0 };
	DES_set_key(&key, &key_sch);
	//如果补0了，解密后无法知道实际大小，需要用户存储原数据大小
	DES_cbc_encrypt(in, (unsigned char*)&s, size, &key_sch, &iv, DES_DECRYPT);
}
int main()
{
		Slip s3;
		EnSlipCBC(s1, out, out_size);
		//AttackSlip(out);
		DeSlipCBC(out, out_size, s3);
		cout << "s3 from: " << s3.from << endl;
		cout << "s3 to: " << s3.to << endl;
		cout << "s3 ammout: " << s3.amount << endl;
}
```

# 封装DES实现CBC和ECB的PKCS7Padding分块填充

```
#pragma once
#include <string>
#include <openssl/des.h>
//枚举类型
enum XSecType
{
	XDES_ECB,
	XDES_CBC
};

/*
Xsec sec;
sec.Init(XDES_ECB,"12345678",ture);
*/
class  XSec
{
public:
	/// 初始化加密对象
	/// <param name="type">加密类型</param>
	/// <param name="pass">密钥，可以是二进制</param>
	/// <param name="is_en">true加密，false解密</param>
	/// 是否成功
	virtual bool Init(XSecType type, const std::string& pass, bool is_en);

/// <summary>
	/// 加解密数据
	/// </summary>
	/// <param name="in">输入数据</param>
	/// <param name="in_size">数据大小</param>
	/// <param name="out">输出数据</param>
	/// <returns>成功返回加解密后数据大小，失败返回0</returns>
	virtual int Encrypt(const unsigned char* in, int in_size, unsigned char* out);

private:
	/// <summary>
	///DES_ECB加密模式
	/// </summary>
	int EnDesECB(const unsigned char* in, int in_size, unsigned char* out);

//DES_ECB解密模式
	int DeDesECB(const unsigned char* in, int in_size, unsigned char* out);

///DES_CBC加密模式
	/// </summary>
	int EnDesCBC(const unsigned char* in, int in_size, unsigned char* out);

//DES_CBC解密模式
	int DeDesCBC(const unsigned char* in, int in_size, unsigned char* out);

//加密算法密钥
	DES_key_schedule ks_;

//加秘算法类型
	XSecType type_;
	bool is_en_;
	//数据块分组大小
	int block_size_ = 0;

//初始化向量
	unsigned char iv_[128] = { 0 };
};

```

---

```
#include "xsec.h"
#include <iostream>
using namespace std;

bool XSec::Init(XSecType type, const std::string& pass, bool is_en)
{
	this->type_ = type;
	this->is_en_ = is_en;
	this->block_size_ = DES_KEY_SZ;
	//初始化iv_
	memset(iv_, 0, sizeof(iv_));
	const_DES_cblock key = { 0 };
	//密码策略，超出8字节丢弃，少的补充0
	int key_size = pass.size();
	if (key_size > block_size_) key_size = block_size_;
	memcpy(&key, pass.data(), key_size);

DES_set_key(&key, &ks_);

return true;
}

int XSec::Encrypt(const unsigned char* in, int in_size, unsigned char* out)
{
	if(type_ == XDES_ECB)
		if (is_en_)
		{
			return EnDesECB(in, in_size, out);
		}
		else {
			return DeDesECB(in, in_size, out);
		}
	else if (type_ == XDES_CBC)
		if (is_en_)
		{
			return EnDesCBC(in, in_size, out);
		}
		else {
			return DeDesCBC(in, in_size, out);
		}
	return 0;
}

int XSec::EnDesECB(const unsigned char* in, int in_size, unsigned char* out)
{
	//数据填充PKCS7 Padding
	//PKCS7Padding：假设数据长度需要填充n(n>0)个字节才对齐，那么填充n个字节，每个字节都是n;如果数据本身就已经对齐了，则填充一块长度为块大小的数据，每个字节都是块大小。
	unsigned char padding[8] = { 0 };
	int padding_size = block_size_ - (in_size % block_size_);
	//填入补充的字节大小
	memset(padding, padding_size, sizeof(padding));
	int i = 0;
	for ( ; i < in_size; i += block_size_)
	{
		//最后一块数据，小于block_size_ 需要填充
		if ( in_size-i<block_size_)
		{
			//填入数据
			memcpy(padding, in + i, in_size - i);
			break;
		}
		DES_ecb_encrypt((const_DES_cblock*)(in + i), (DES_cblock*)(out + i), &ks_, DES_ENCRYPT);
	}
	//补充 PKCS7结尾
	DES_ecb_encrypt((const_DES_cblock*)padding, (DES_cblock*)(out + i), &ks_, DES_ENCRYPT);
	return in_size + padding_size;
}

int XSec::DeDesECB(const unsigned char* in, int in_size, unsigned char* out)
{
	for (int i = 0; i < in_size; i += block_size_)
	{
		DES_ecb_encrypt((const_DES_cblock*)(in + i), (DES_cblock*)(out + i), &ks_, DES_DECRYPT);
	}
	return in_size - out[in_size - 1];
}

int XSec::EnDesCBC(const unsigned char* in, int in_size, unsigned char* out)
{
	//数据填充PKCS7 Padding
	unsigned char padding[8] = { 0 };
	int padding_size = block_size_ - (in_size % block_size_);
	//填入补充的字节大小
	memset(padding, padding_size, sizeof(padding));
	//ncbc保留iv修改 减去需要补充的数据
	DES_ncbc_encrypt(in, out, in_size - (in_size % block_size_),&ks_,(DES_cblock*)iv_,DES_ENCRYPT);

//PKCS7 Padding
	if (in_size % block_size_ != 0)
	{
		memcpy(padding, in + (in_size - (in_size % block_size_)), in_size % block_size_);
	}
	DES_ncbc_encrypt(padding, out+(in_size - (in_size % block_size_)),sizeof(padding), &ks_, (DES_cblock*)iv_, DES_ENCRYPT);
	return in_size+padding_size;
}

int XSec::DeDesCBC(const unsigned char* in, int in_size, unsigned char* out)
{
	DES_ncbc_encrypt(in, out, in_size, &ks_, (DES_cblock*)iv_, DES_DECRYPT);

return in_size - out[in_size-1];
}

int main(int argc, char* argv[])
{
	{
		unsigned char data[] = "123456789";
		unsigned char out[1024] = { 0 };
		unsigned char out2[1024] = { 0 };
		XSec sec;
		//ECB加密
		sec.Init(XDES_ECB, "12345678", true);
		cout <<"============== DES_ECB==================" << endl;
		cout << sizeof(data) << "[" << data << "]" << endl;
		int size = sec.Encrypt(data, sizeof(data), out);
		cout << size << "：" << out << endl;

//ECB解密
		sec.Init(XDES_ECB, "12345678", false);
		size = sec.Encrypt(out, size, out2);
		cout << size << "[" << out2 << "]" << endl;

//CBC解密
		sec.Init(XDES_CBC, "12345678", true);
		cout << "============== DES_CBC==================" << endl;
		cout << sizeof(data) << "[" << data << "]" << endl;
		size = sec.Encrypt(data, sizeof(data), out);
		cout << size << "：" << out << endl;

//CBC解密
		sec.Init(XDES_CBC, "12345678", false);
		size = sec.Encrypt(out, size, out2);
		cout << size << "[" << out2 << "]" << endl;
		getchar();
	}
}
```

最后修改：2023 年 11 月 10 日

如果觉得我的文章对你有用，请随意赞赏

1 条评论

鍗庣撼鍏徃鍚堜綔寮€鎴锋墍闇€鏉愭枡锛熺數璇濆彿鐮?5587291507 寰俊STS5099
November 9th, 2025 at 01:56 am

果博东方客服开户联系方式【182-8836-2750—】?薇- cxs20250806】
果博东方公司客服电话联系方式【182-8836-2750—】?薇- cxs20250806】
果博东方开户流程【182-8836-2750—】?薇- cxs20250806】
果博东方客服怎么联系【182-8836-2750—】?薇- cxs20250806】

回复

发表评论取消回复
使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款

评论 *

私密评论

名称 *

🎲

邮箱 *

地址

2023/11/10-C/C++对称分组加密DES

unique-Elven • 2023 年 11 月 10 日

![image.png](https://www.oisec.cn/usr/uploads/2023/11/1278412872.png)

![image.png](https://www.oisec.cn/usr/uploads/2023/11/4294451728.png)

![image.png](https://www.oisec.cn/usr/uploads/2023/11/963634728.png)

![image.png](https://www.oisec.cn/usr/uploads/2023/11/3135581165.png)

![image.png](https://www.oisec.cn/usr/uploads/2023/11/2606100795.png)

- 对称分组加密常用算法：

·DES
·3DES
·AES

·国密SM4

- 对称分组加密应用场景：

文件或者视频加密

加密比特币私钥

消息或者配置项加密

SSL通信加密

# 对称分组加密

## 使用异或实现一个简易的对称加密算法

A明文   B秘钥
A^B=密文A^B
(A^B)^B =A

```
#include <iostream>

using namespace std;

int re_size = data_size;
	return re_size;
}

## DES_ECB攻击

```
#include <iostream>
#include <openssl/des.h>
using namespace std;

//交易数据
struct Slip
{
	char from[16] = { 0 }; //A=>B 10000
	char to[16] = { 0 };	//篡改为B=> 10000
	long long amount = 0;

};

static const_DES_cblock key = "1234567";
static DES_key_schedule key_sch;

void EnSlip(const Slip& s, unsigned char* out, int& out_size)
{
	const int size = sizeof(s);
	auto p = (const unsigned char*)&s;
	auto o = out;

DES_set_key(&key, &key_sch);
	for(int i = 0; i < size; i += 8)
	{
		DES_ecb_encrypt((const_DES_cblock*)p, (DES_cblock*)o, &key_sch, DES_ENCRYPT);
		p += 8;
		o += 8;
		out_size += 8;
	}
}

void AttackSlip(unsigned char* out)
{
	//修改秘文的from和to对调
	unsigned char tmp[1024] = { 0 };
	//from
	memcpy(tmp, out, 16);
	memcpy(out, out + 16, 16);
	memcpy(out + 16, tmp, 16);

}

unsigned char data[] = "1234567";//数据
	unsigned char out[1024] = { 0 };//输出数据
	unsigned char out2[1024] = { 0 };

//1.设置密钥
	DES_set_key(&key, &key_sch);
	//数据加密
	DES_ecb_encrypt((const_DES_cblock*)data, (DES_cblock*)out, &key_sch, DES_ENCRYPT);
	cout << "加密：" << out << endl;

//解密
	DES_ecb_encrypt((const_DES_cblock*)out, (DES_cblock*)out2, &key_sch, DES_DECRYPT);
	cout << "解密：" << out2 << endl;
	getchar();
	return 0;
}
```

#### DES_CBC

# 封装DES实现CBC和ECB的PKCS7Padding分块填充

```
#pragma once
#include <string>
#include <openssl/des.h>
//枚举类型
enum XSecType
{
	XDES_ECB,
	XDES_CBC
};

private:
	/// <summary>
	///DES_ECB加密模式
	/// </summary>
	int EnDesECB(const unsigned char* in, int in_size, unsigned char* out);

//DES_ECB解密模式
	int DeDesECB(const unsigned char* in, int in_size, unsigned char* out);

///DES_CBC加密模式
	/// </summary>
	int EnDesCBC(const unsigned char* in, int in_size, unsigned char* out);

//DES_CBC解密模式
	int DeDesCBC(const unsigned char* in, int in_size, unsigned char* out);

//加密算法密钥
	DES_key_schedule ks_;

//加秘算法类型
	XSecType type_;
	bool is_en_;
	//数据块分组大小
	int block_size_ = 0;

//初始化向量
	unsigned char iv_[128] = { 0 };
};

```

---

```
#include "xsec.h"
#include <iostream>
using namespace std;

DES_set_key(&key, &ks_);

return true;
}

int XSec::DeDesCBC(const unsigned char* in, int in_size, unsigned char* out)
{
	DES_ncbc_encrypt(in, out, in_size, &ks_, (DES_cblock*)iv_, DES_DECRYPT);

return in_size - out[in_size-1];
}

//ECB解密
		sec.Init(XDES_ECB, "12345678", false);
		size = sec.Encrypt(out, size, out2);
		cout << size << "[" << out2 << "]" << endl;

//CBC解密
		sec.Init(XDES_CBC, "12345678", false);
		size = sec.Encrypt(out, size, out2);
		cout << size << "[" << out2 << "]" << endl;
		getchar();
	}
}
```

2023/11/10-C/C++对称分组加密DES

1 条评论

发表评论取消回复
使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款

BUUCTF-CrackRTF(Reverse逆向)

BUUCTF-[2019红帽杯]easyRE(Reverse逆向)

SSRF

2022年浙江省职业院校技能大赛高职组信息安全管理与评估

HUAWEl-Student-Developers-华为校园开发者计划

007-reg 的 write up

docker入门-快速学会docker

第四届“网鼎杯”网络安全大赛

009-Boonz-KeygenMe#1 的 write up

世界华人学生作文大赛2019

2023/11/10-C/C++对称分组加密DES

1 条评论

发表评论 取消回复 使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款

2023/11/10-C/C++对称分组加密DES

发表评论取消回复
使用cookie技术保留您的个人信息以便您下次快速评论，继续评论表示您已同意该条款
